online_culvert:   Hydraulic design of highway culverts by FHWA method

Reference

Hydraulic Design of Highway Culverts, HDS 5, Federal Highway Administration,
Third Edition, 2012.

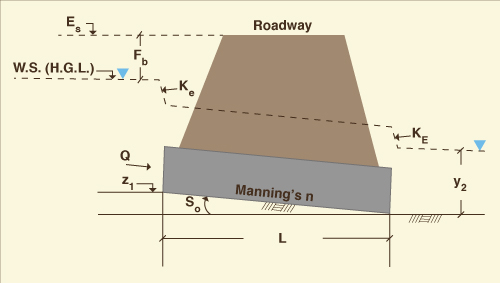

INPUT DATA:

[Description]       [Sample input]       [HW/D Table]

Units:           [U.S. units] (SI units)

Discharge Q [cfs] (m3/s):

Inlet invert elevation z1 [ft] (m):

Manning's n:

Bottom slope So:

Tailwater depth above outlet invert y2 [ft] (m):

Culvert length L [ft] (m):

Shoulder elevation Es [ft] (m):

Freeboard Fb [ft] (m):

Entrance loss coefficient Ke :

Exit loss coefficient KE :

OUTPUT:

Please enter input data and press 'Calculate'.
